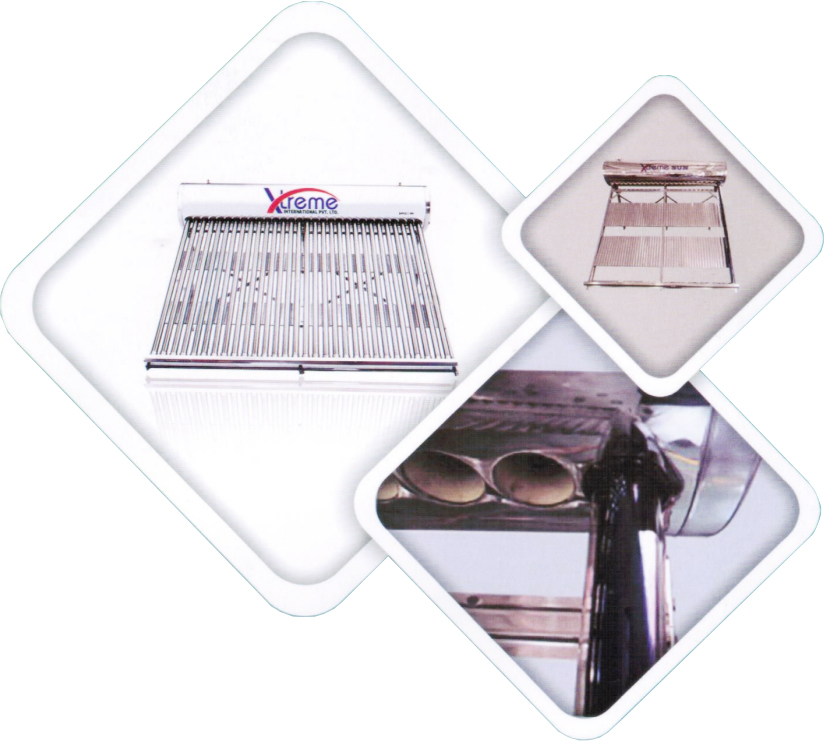

Specification:
| Vacuum Tube | Material Spec(mm) | All glass vacuum tube 058*1800 |
| Vacuum Tube | Tube(pcs) | 15/20/24/30/36 |
| Water Tank | Inner Tank | Imported food-grade stanless steel SUS304-2B |
| Water Tank | Insulation | Integrated foam-forming polyurethane |
| Water | Outer Shell | Stainless Steel |
| Bracket | Material | Stainless Steel |
Solar Installation Procedure:
- Remove the tank from its cartoon.
- Install the tank on the complete frame and align tank bolts with slots on the frame.
- Fit tank securing nuts but do not tighten fully until tubes have bees installed and both the tank and Tube Base have been lined up.
- Wrap plumbers tap around the joints and also the joints above the main tank
- Next, you can install the vent pipe.
- Vent pipes must be 30cm above the header tank.
- Please install a gate valve on the hot water outlet side and cold water inlet side.
- For any emergency can be able to close the water
